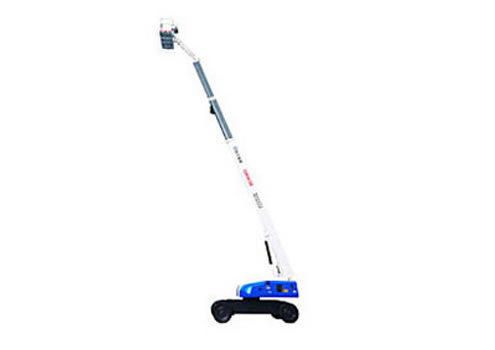

GKH30

Technical Specifications

Items

Unit

Parameters

Total length mm 13000
Total mm 2490/3590
Total mm 2910
Axle base mm 3600
Rated work m 30
Max. platform m 28.3
Max.work range m 24.3
Arm luffing range ° -12~+80
Bent arm luffing range ° -65~+70
Arm luffing time s 40
Arm contraction time s 70
Max.rotation speed r/min 0.5
Max.tail swing mm 1400
Platform size mm 1800×900×1150
Platform rotation range ° ±90
Turntable rotation radius mm 2650
Total weight under travel condition kg 15880
Rated load kg 150
Max. load kg 450
Max.travel speed km/h 5.6
Min. turning radius m 7
Min.ground clearance mm 260
Max. gradeability % 30
Engine model YC4D80-T10
Rated engine power kW/(r/min) 58/(2400)
Solid tyre 10.00-20/7.5
