XE470C

Technical Specifications

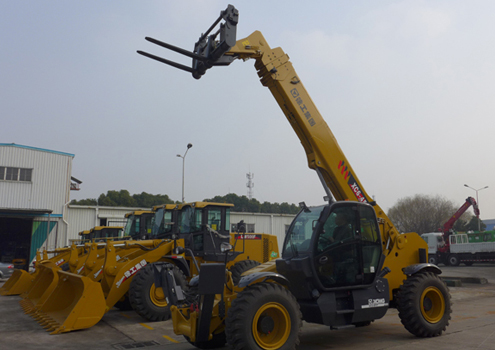

XCMG XC6-3507 telescopic handlers Main Parameters:

Item Unit XC6-3507
Operation weight Kg 7850
Engine power Kw 70/Deutz
Max. payload capacity kg 3500
Payload at max extension Kg 1250
Max extension mm 3600
Max outreach mm 600
Load center distance mm -0.046153846
Swing angle ° 90
Fork decline angle angle of frame Forwards ° \
Backwards ° 17.5
Max traction force Kn 55
Max Gradeability ° 40
Max travel speed km/h 30
Turning radius mm 3880
Max Brake distance m 8
Total length mm 4995
Total mm 2470
Total mm 2250
Wheel base mm 2985
Wheel tread mm 1840
Fork length mm 1200
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
