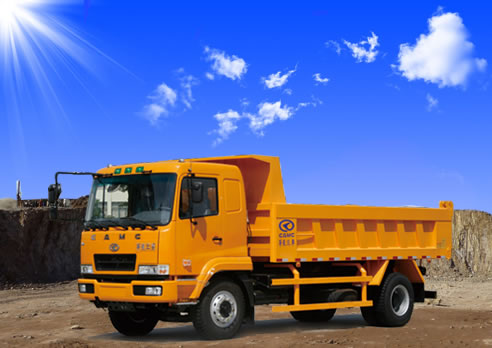

CAMC Star Series 4×2 Dump truck

(CAMC Star Series) Technical Specifications of CAMC 4×2 Tipper Truck

Product Name
Dump Truck
Product Model
HN3120Z24D8M3
Place of Origin
Maan shan, Anhui, China
Kerb mass
10ton
Rated Payload
15-20ton
Drive Type
Left-Hand(optional RHD)
Drive Model
4x2
Vehicle Body Color
Yellow(optional)
Overall Dimension (LxWxH)mm
7020x2500x3300
Body interior (mm)
4800×2300×1200
Engine
Brand
Yuchai
Model
YC6A240-33
Max. Power (kw/r/min)
177/2300
Max. T Qrgue(Nm/r/min)
900/1400-1600
No. of cylinder
6
Bore x Stroke(mm)
108x132
Displacement
7255ml
Control Type
Mechanical
Air Cleaner
Dry Paper Element
Emission Standard
Euro II
Clutch
Type
Hydraulic control with air assisted
Plate diameter
dry single plate with diaphragm
outside diameter: 430 mm
Transmission
Brand
FAST GEAR
Model
8JS118 (8-speed & 1-reverse)
Type
Mechanical
The Number of Axles
2
Rear Axle(drive axle)-Load
16000kg
Front Axle-Load
7500kg
Cabin type
Classic flat-roof (optional EF,CH,EH)
Cabin
With A/C, Radio, MP3,Bunk
Brake System
Service
Full air brake dual ciruit
Parking
Spring actugtor at rear wheels
Auxiliary
Exhaust break
Steering System
recirculation ball with integral power
assisted by oil
Wheelbase (mm)
3800
Wheel/Tire
Type
Bias/Radial tube/Radial tubeless
Model(optional)
11.00-20/11.00R20/11R22.5
12.00-20/12.00R20/12R22.5
Tire number
6+1
Fuel Tank
Volume(L)
300
Body Steel Thickness
Bottom 8mm/Side 5mm
Body Lifting System
Hydraulic Central Lift
Front overhang/Rear overhang(mm)
1370/1750
Approach/Departure Angle(°)
23/26
No. of steel spring(front/rear)
9/12
Max. Speed (km/h)
75
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
