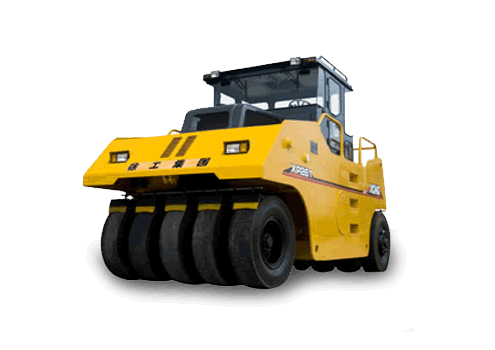

XP203 hydraulic pneumatic tyre roller is the landmark of 3 series products developed on the basis of 2 series products. It leads the development of Chinese tyre compactor due to its high start, high technique, high performance, and high quality. The machine features beautiful appearance, driving comfort, simple operation, excellent performance, safety and reliability, and convenient maintenance. It can be applied in the construction of asphalt road, base layer, hypo-base layer, and fill construction. It is a necessary compact equipment for road construction and water conservancy construction, especially for the high-grade highways.

Technical Specifications

Model	Unit	XP203
Min. working weight	kg	11740
Max. working weight	kg	20000
Ground pressure	kPa
Travel speed	km/h	200-400
	Speed I	4.2
	Speed II	8.2
	Speed III	17.4
	Reverse speed I	4.17
	Reverse speed II	8.2
Theoretical gradeability	%	20
Min. turning external radius	mm	7330
Min. ground clearance	mm	250
Compaction	mm	2250
Roller overlap amount	mm	45
Tyre specification		11.00-20-16PR
Amount		FrontFront 4 Rear rear 5
Engine model		YC4A125Z
Type		Water cooling, pressurizing
Rated power	kw @2200 r/min	92
Engine oil consumption	g.kw/h	≤230
Hydraulic oil tank capacity	L	60
Diesel oil tank capacity	L	150
Overall length	mm	4770
Overall	mm	2250
Overall	mm	3285

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
