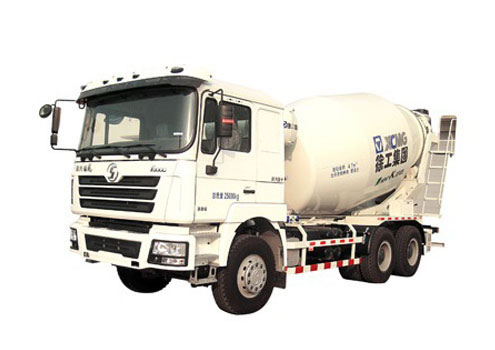

G10ZZ
Technical Specifications
Type Model Unit G10ZZ
Performance of mixing drum Geometric volume 17.1
Mixing volume 10
Maximum diameter of drum body mm 2380
Length of mixing drum mm 5447
Angle of inclination ° 13.5
Rotating speed r/min 0~14
Charge speed m³/min ≥3
Discharge speed m³/min ≥2
Residue ratio of discharge % <0.7
Range of slump cm 5~21
Hydraulic system Oil pump international brand
Motor international brand
Reduction gears international brand
Hydraulic circuit Closed type
Water supply water tank capacity L 450
Way of water supply Pneumatic
Complete machine Brand of chassis Sinotruck
Chassis model ZZ1257N3847C
Type of driving Left-hand drive
Curb weight kg 14000
maximum gross weight kg 25000
Driving type 6×4
Wheel base mm 3825+1350
Tyre 12.00R20
Means of power takeoff Power takeoff by flywheel
Notice model XZJ5251GJB1
External dimensions (length××)mm 9300×2500×3890
Engine Model WD615.95E
Rated power Kw/r/min 247
Displacement L 9.726
Emission standard GB III
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
