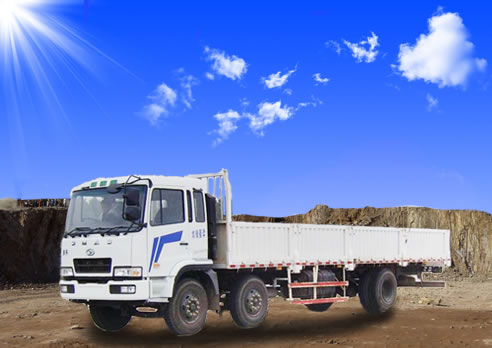

CAMC Star Series 6×2 cargo truck

Technical Parameter

Product Name
Cargo Truck
Product Model
HN1250P26E8M3
Place of Origin
Maanshan,Anhui,China
G.V.W
21 ton
Kerb mass
10 ton
Payload
11 ton
Drive Type
Left Hand(optional RHD)
Drive Model
6×2
Engine
Brand
CUMMINS
Model
L290 30
Max. Power (kw/r/min)
213/2200
Displacement
8300ml
Emission Standard
Euro II
Clutch
Model
Φ430 diaphragm spring
Transmission
Brand
FAST GEAR
Model
9JS119
Rear Axle(drive axle)-load
13 ton
Front Axle-load
7.5 ton x 2
Cabin type
Classic Flat roof (optional CH,EF,EH)
Cabin
With A/C, Radio, Bunk
Steering System
HITACHI
Wheelbase (mm)
1850+5800
Tire
Type
Bias/Radial
Model
11.00-20/11.00R20 /12.00-20/12.00R20
Tire number
8+1
Oil Tank
Volume(L)
320
Dimensions
(L×W×H)
Overall (mm)
11980x2495x3140
Body interior (mm)
9600x2300x800
Front overhang/Rear overhang(mm)
1370/3450
Approach/Departure Angle(°)
25/24
Max. Speed (km/h)
90

Remarks: Due to improvements made to the product, data herein is subject to change without notice.Different outfits are provided for the different configurations of the motor vehicles.Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.CAMC reserves the rights to make final explanations.
