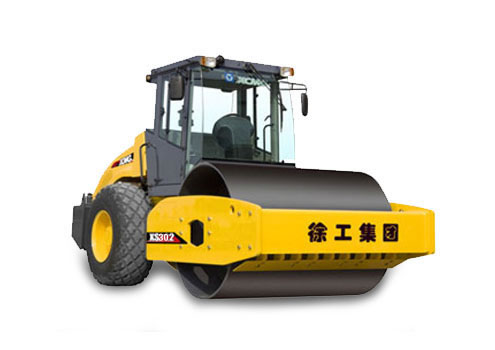

XS302 Roller
XS302 single drum vibratory road roller is the super heavy-duty hydraulic drive vibratory roller with the largest tonnage in China. Representing XCMG’s new generation of super heavy-duty vibratory rollers, the machine takes a lead in operation, propulsion, compaction, reliability and serviceability in the industry, becoming an optimal compacting equipment in the constructions of high-grad roads, airports, ports, dams, and construction sites. It adopts large power engine and anti-slip hydraulic drive system, which can meet various construction requirements better.

Item
Unit
XS302
Operation weight
kg
30000
Load on front drum
kg
18800
Load on rear wheels
kg
11200
Drum
mm
2130
Static linear load
N/cm
866
Vibration frequency(Low/High)
Hz
27/33
Nominal amplitude(High/Low)
mm
2.0/1.0
Excitation force(High/Low)
KN
520/390
Travel speed
km/h
0~10
Steering angle
°
±33
Swing angle
°
±10
Theoretical gradeability
%
40
Min. external turning radius
mm
7180
Engine model
DEUTZ BF6M1013ECP
Engine power
kw
179
Rated engine speed
r/min
2200
Engine oil consumption
g/kW.h
229
Hydraulic oil tank capacity
L
290
Fuel tank capacity
L
290
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
