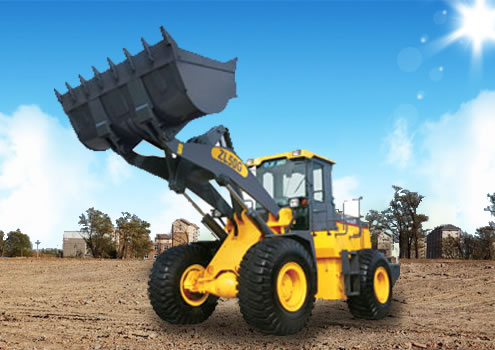

Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

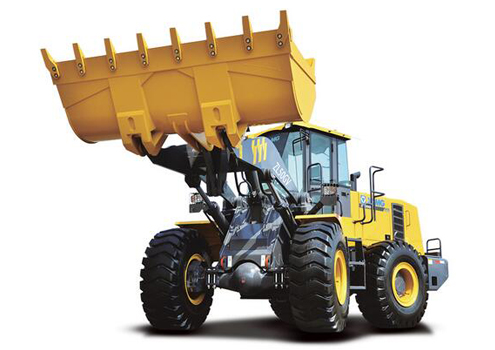

The large rock bucket with capacity of 3.0m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.

Bucket	ZL50G
Bucket capacity	3.0m³
Rated load	5000kg
Rated time	6 secretary
Total cycling time	11secretary
Max.drawing force	145Kn
Max.breakout force	170Kn
Articulation angle	35°
Min.turn radius	6400mm
Climb ability	28°
Wheel base	3300mm
Tread	2200mm
Dumping clearance	3090mm
Dumping reach	1130mm
L×W×H	8110×3000×3508mm
Operating weight	18t
Clamp type
Min.clamping diameter	φ450/φ800mm
Dumping clearance	3230mm
Dumping reach	1845mm
L×W×H	8414×2800×3460mm
Operating weight	18t

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
