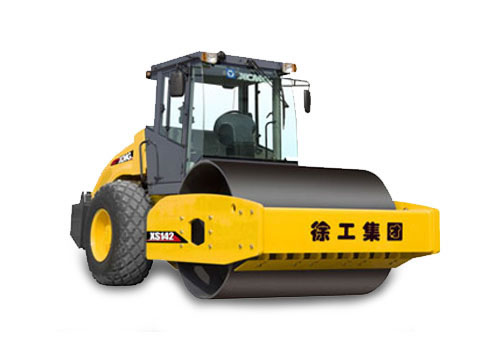

XS142 Roller
XS142 Road Roller: Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.

Technical Specifications

Type Unit XS142
Operating weight kg 14000
Load on front drum kg 8200
Load on rear wheels kg 5800
Drum mm 2130
Static linear load N/cm 385
Vibration frequency(Low/High) Hz 28/35
Nominal amplitude(High/Low) mm 1.86/0.88
Excitation force(High/Low) KN 305/225
Travel speed km/h 0~12
Steering angle ° ±33
Swing angle ° ±10
Theoretical gradeability % 55
Min. external turning radius mm 6415
Engine model Cummins B5.9
Engine power kw 110
Rated engine speed r/min 2200
Engine oil consumption g/kW.h 232
Hydraulic oil tank capacity L 240
Fuel tank capacity L 240
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
