Product Name
|

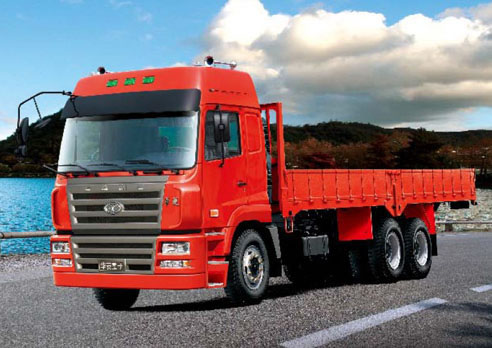

Cargo Truck
|
|
|
Product Model
|
HN1250
|
|
|
Place of Origin
|
Maanshan,Anhui,China
|
|
|
G.V.W
|
25 ton
|
|
|
Kerb mass
|
11.5 ton
|
|
|
Payload
|
13.5 ton
|
|
|
Drive Type
|
Left Hand (optional RHD)
|
|
|
Drive Model
|
6×4
|
|
|
Engine
|
Brand
|
CUMMINS
|
|
Model
|
C300 20
|
|
|
Max. Power (kw/r/min)
|
221/2200
|
|
|
Displacement
|
8300ml
|
|
|
Emission Standard
|
Euro II
|
|
|
Clutch
|
Model
|
Φ430 diaphragm spring
|
|
Transmission
|
Brand
|
FAST GEAR
|
|
Model
|
9JS135T
|
|
|
Rear Axle(drive axle)-load
|
13 tonx2
|
|
|
Front Axle-load
|
7.5 ton
|
|
|
Cabin Type
|
European flat roof (optional CF,CH,EH)
|
|
|
Cabin
|
With A/C, Radio, Bunk
|
|
|
Steering System
|
HITACHI
|
|
|
Wheelbase (mm)
|
5850+1350
|
|
|
Wheel/Tire
|
Type
|
Bias/Radial
|
|
Model
|
11.00-20/11.00R20/12.00-20/12.00R20
|
|
|
Tire number
|
10+1
|
|
|
Oil Tank
|
Volume(L)
|
320
|
|
Dimensions(L×W×H)
|
Overall (mm)
|
11980x2495x3040
|
|
Body interior (mm)
|
9600x2300x800
|
|
|
Front overhang/Rear overhang(mm)
|
1370/3450
|
|
|
Approach/Departure Angle(°)
|
24/22
|
|
|
No. of steel spring(front/rear)
|
9/12
|
|
|
Max. Speed (km/h)
|
90
|
|
