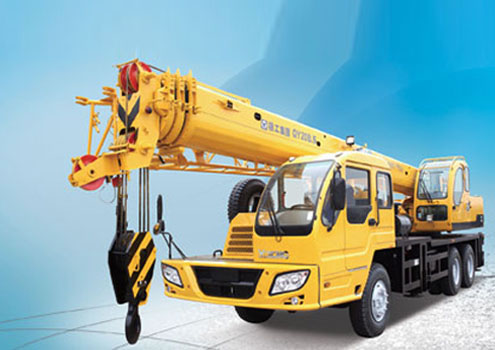

QY16B.5

Technical Specifications

Dimension Unit QY16B.5
Overall length mm 12110
Overall mm 2500
Overall mm 3250
Weight
Total weight in travel kg 24000
Front axle load kg 6400
Rear axle load kg 17600
Power
Engine model WD415.21
SC8DK230Q3
Engine rated power kW/(r/min) 155/2200?170/2200
Engine rated torque N.m/(r/min) 820/1400
830/1400
Travel
Max. travel speed km/h 75
Min. turning diameter mm 20000
Min. ground clearance mm 270
Approach angle ° 21
Departure angle ° 10
Max. grade ability % 24
Fuel consumption for 100km L ≤35
Main performance
Max. rated total lifting capacity t 16
Min. rated working radius m 3
Turning radius at turntable tail m 3.14
Max. lifting torque KN.m 720
Base boom m 9.9
Fully extended boom m 31.1
Fully extended boom+jib m 39.4
Longitudinal outrigger span m 4.6
Lateral outrigger span m 5.4
Working speed
Boom luffing time s 60
Boom full extension time s 95
Max. swing speed r/min 2.5
Main winch full load/no load (single rope) m/min 54/100
Aux. winch full load/no load (single rope) m/min 54/100

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
