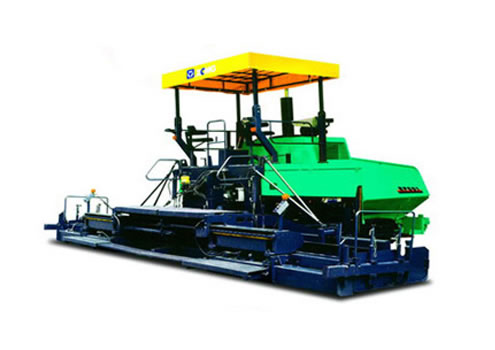

RP601 Paver
RP601 multifunctional paver adopts multiple advanced technologies like micro-electronic control, ultrasonic sensor, automatic electronic leveling, single vibrator and gas heating, etc. And the key matching components adopt imported products, so it achieves the technical level of similar imported products in product quality and reliability. The paving width ranges from 2.5m to 6m, which can be steplessly adjusted. The ergonomical design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio, and it is applicable to the asphalt concrete paving for municipal construction and highways of various grades.

Technical Specifications

Items Unit Parameters
Basic paving m 2.5
Max. paving m 6
Max. paving thickness mm 150
Paving speed m/min 0~3.6
Travel speed km/h 0~11
Theoretical Productivity t/h 300
Hopper Capacity t 13
Gradeability % 20
Pavement evenness mm/3m 3
Transverse levelling accuracy % ±0.03
Centre crown ratio % 0~+3
Engine model D4114ZG2B
Engine power kW 100
Engine speed r/min 2400
Machine weight t 17.4
Dimension mm 6400X2580X3830
Vibrator speed r/min 0~1470
Screed heating Gas heating
Auger and conveyor control Automatic Control by Ultrasonic Sensors
Automatic levelling control Simulation control of electronic automatic leveler
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
