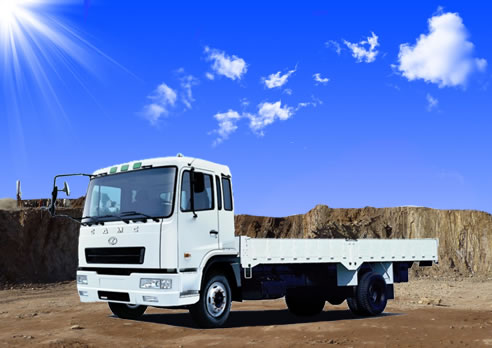

CAMC 4x2 Cargo Truck

Technical Parameter

Product Name
Cargo Truck
Product Model
HN1161Z18E6M3
Place of Origin
Maanshan,Anhui,China
G.V.W
16 ton
Kerb mass
8 ton
Payload
8 ton
Drive Type
Left Hand (optional RHD)
Drive Model
4×2
Engine
Brand
YUCHAI
Model
YC6J180-33
Max. Power (kw/r/min)
132/2200
Displacement
8300ml
Emission Standard
Euro II
Clutch
Model
Φ430 diaphragm spring
Transmission
Brand
FAST GEAR
Model
7DS100
Rear Axle(drive axle)-load
13 ton
Front Axle-load
5.5 ton
Cabin type
Classic flat roof (optional EF)
Cabin
With A/C, Radio, Bunk
Steering System
HITACHI
Wheelbase (mm)
4800
Wheel/Tire
Type
Bias/Radial
Model
11.00-20/11.00R20
Tire number
6+1
Oil Tank
Volume(L)
250
Dimensions
(L×W×H)
Overall (mm)
8580x2495x3200
Body interior (mm)
6700x2300x600
Front overhang/Rear overhang(mm)
1370/2410
Approach/Departure Angle(°)
25/20
Max. Speed (km/h)
90

Remarks: Due to improvements made to the product, data herein is subject to change without notice.Different outfits are provided for the different configurations of the motor vehicles.Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.CAMC reserves the rights to make final explanations.
