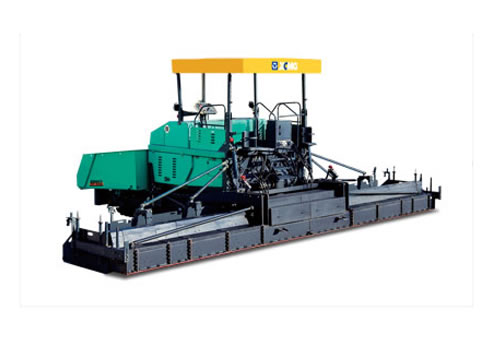

RP952 Paver

Center cooling technology: advanced and unique

With the optimized configuration and optimal cooling performance, the combined cooling water tank is 50% large than the standard water tank of the diesel engine, which could ensure the machine working constantly in high temperature.
The diesel engine and the cooling system adopt the unique closing structure.
The heat of the machine is discharged forcefully.

Technical Specifications

Item Unit RP952
Basic Paving m 3
Max Paving m 9.5
Max Paving Thickness mm 350
Paving Speed m/min 0~16.5
Travel Speed km/h 0~2
Theoretical Productivity t/h 700
Capacity t 14
Hopper Capacity % 20
Gradeability mm/3m ≤3
Pavement Evenness % ±0.03
Transverse Leveling Accuracy % -1~3
Centre Crown Ratio
Engine Model D6114ZG1B
Engine Power kw 140
Engine Speed r/min 2300
Diesel Tank Capacity L 270
Machine Weight t 21.3~28.8
Tamper Vibration Frequency Hz 0~50
Screed Heating Gas Heating
Auger and Conveyor Control Automatic Control by Ultrasonic Sensors
Automatic Leveling Control Simulation
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
