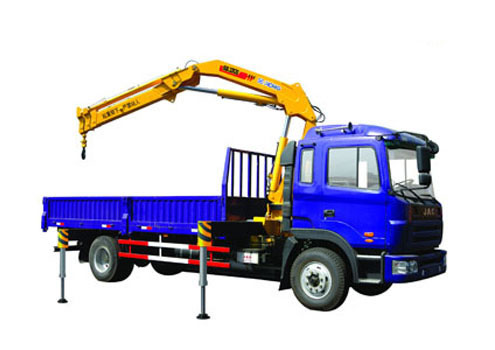

SQ6.3ZK2Q

Technical Specifications


Model SQ6.3ZK2Q Unit
Max Lifting Moment 13.23 t.m
Max Lifting Capacity 6300 kg
Recommend Power Needed At Recommend Oil Flow 18 kw
Max Oil Flow of Hydraulic System 25 L/min
Rated Pressure Of Hydraulic System 28 MPa
Oil Tank Capacity 90 L
Rotation Angle (360°)All Rotation °
Crane Weight 2115 kg
Installation Space 1050 mm
Choice of Chassis CA1163P7K2L3E ;CA1176PK2L9T3A95 CA1170PK2L7T3EA80; CA1140PK2L3EA80 ; DFL1140B;EQ1126KJ1;HFC1132KR1K3;HFC1202KR1K3;EQ1141NBJ2;EQ5161GFJ7;BJ1317VNPJJ-S5;EQ5201GFJ6;LZ1160LCMT;DFL1250A9;BJ5317ZNPJJ-S;HN1310P29D6M3J ;NXG1160D3ZAL1X;
SQ6.3ZK2Q Lifting capability diagram
Working radius (m) 2.1 4.44 6.2 8.01
Lifting capacity (kg) 6300 2700 1700 1200

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
