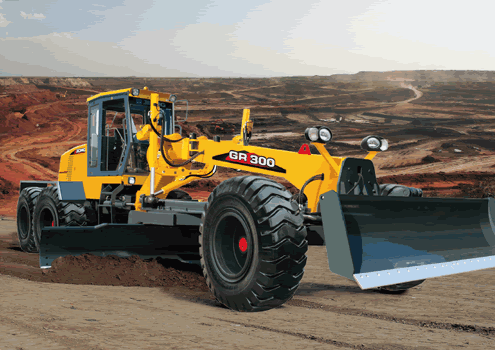

GR300 Motor Grader

Technical Specifications

Basic specification
Engine model QSL9
Rated power/speed 224kW/2100rpm
Dimension(LxWxH) 10500×3100×3550mm
Operating weight(Standard) 26000kg
Performance specification
Travelling speed ,forward 5,8,11,19,23,40 km/h
Travelling speed ,reverse 5,11,23 km/h
Tractive force(f=0.75) 140KN
Max. gradeability 30%
Tire inflation pressure 350 kPa
Working hydraulic pressure 16 MPa
Transmission pressure 1.3~1.8MPa
Operating specification
Max. steering angle of front wheels ±50°
Max. lean angle of front wheels ±17°
Max. oscillation angle of front axle ±15°
Max. oscillation angle of balance box 15
Frame articulation angle ±27°
Min. turning radius using articulation 8.0m
Biade
Maximum lift above ground 450mm
Maximum depth of cutting 500mm
Maximum blade position angle 90°
Blade cutting angle 28°—70°
Circle reversing rotation 360°
Moldboard X 4920×787mm
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
