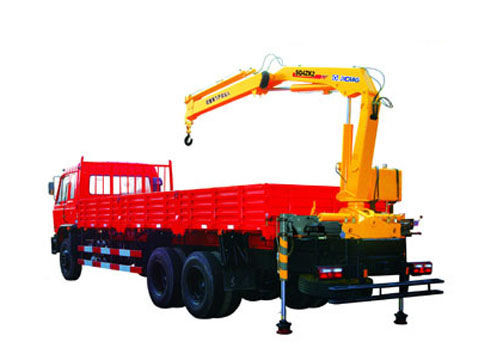

SQ4ZK2

Technical Specifications

Model SQ4ZK2 Unit
Max Lifting Moment 8.4 t.m
Max Lifting Capacity 4000 kg
Recommend Power Needed At Recommend Oil Flow 14 kw
Max Oil Flow of Hydraulic System 25 L/min
Rated Pressure Of Hydraulic System 26 MPa
Oil Tank Capacity 60 L
Rotation Angle 370 ?
Crane Weight 1200 kg
Installation Space 850 mm
Choice of Chassis EQ1092FJ1;EQ1092FJ;DFL1120B D530;EQ1081GJ12D5;HFC1132KR1K3;LZ1120LAPT;HFC1083K103R1D;EQ1092F3GJ1;EQ5121GFJ;

SQ4ZK2 Lifting capability diagram
Working radius (m) 2.1 4.15 5.8 7.3
Lifting capacity (kg) 4000 1840 1260 920
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
