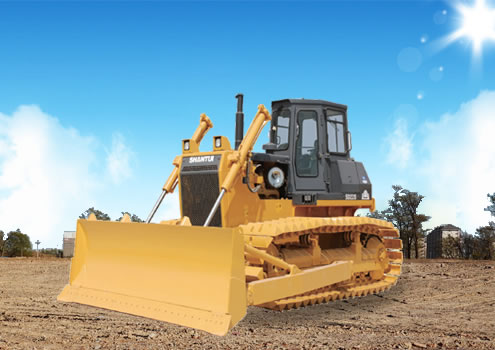

SD22 Bulldozer

Technical Specifications

ITEM UNIT SD22
L×W×H (Ripper not included) mm 5750×3725×3395
Operating weight (Ripper not included) t 23.4
Engine - Cummins
NT855-C280S10
Rated power kW/rpm 162/1800
Gradeability ° 30
Blade type - Straight tilt blade U-blade
Semi-U blade Angle blade
Blade mm Straight tilt blade 3725×1315
U blade 3800×1343
Semi-U blade 3725×1374
Angle blade 4365×1055
Dozing capacity m3 Straight tilt blade 6.4
U blade 7.5
Semi-U blade 7.0
Angle blade 4.7
Ma× drop below ground of blade mm 540
Lift of blade mm 1210
Ripper type Single ripper Three-shank ripper
Ripping depth of ripper mm Single ripper 695
Three-shank ripper 666
Lifting of ripper mm Single ripper515
Three-shank ripper 555
Number of carriers (each side) - 2
Number of track rollers (each side) - 6
Number of track shoes (each side) - 38
of track shoe mm 560
Track gauge mm 2000
Ground length and ground pressure mm/MPa 2730-0.077
Pitch mm 216
Forward speed km/h 0-3.6
0-6.5
0-11.2
Reverse speed
km/h
0-4.3
0-7.7
0-13.2
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
