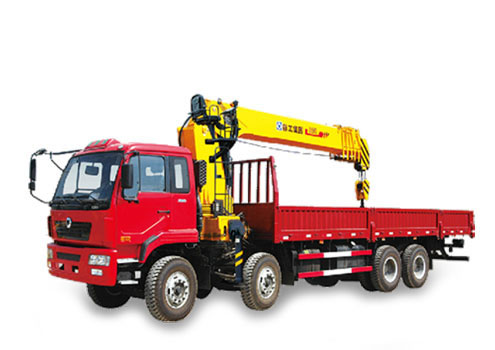

SQ16SK4Q

Technical Specifications


Model SQ16SK4Q Unit
Max Lifting Capacity 16000 kg
Max Lifting Moment 40 T.M
Recommend Power 45 kw
Max Oil Flow of Hydraulic System 80 L/min
Max Pressure of Hydraulic System 28 MPa
Oil Tank Capacity 260 L
Rotation Angle All Rotation
Crane Weight 6020 kg
Installation Space 1400 mm
Choice of Chassis BJ1317VNPJJ-S5;NXG1310D3ZEX;DFL1311A3;
SQ16SK4Q Lifting capability diagram
Working radius(m) 2.7 5.6 8.5 11.5 14.5 18.5
Lifting capacity(kg) 16000 7000 4200 3200 2200 1000
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
