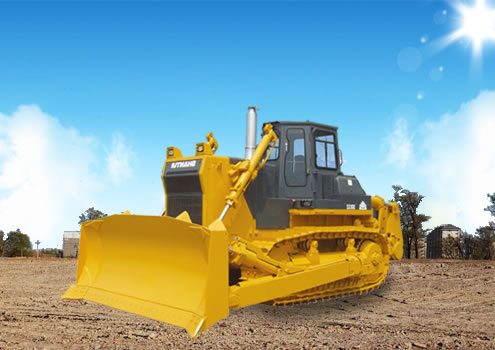

SD32 Bulldozer

Technical Specifications

ITEM UNIT SD32
L×W×H (Ripper not included) mm 6880×4130×3725
Operating weight (Ripper not included) t 37.2
Engine - CumminsNTA855-C360S10
Rated power kW/rpm 235/2000
Gradeability ° 30
Blade type - Straight tilt bladeSemi-U bladeAngle blade
Blade mm Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140
Dozing capacity m3 Straight tilt blade 10Semi-U blade 11.9Angle blade 6
Ma× drop below ground of blade mm 560
Lift of blade mm 1560
Ripper type - Single ripperThree-shank ripper
Ripping depth of ripper mm Single ripper 1250Three-shank ripper 842
Lifting of ripper mm Single ripper 955Three-shank ripper 883
Number of carriers (each side) - 2
Number of track rollers (each side) - 7
Number of track shoes (each side) - 41
of track shoe mm 560
Track gauge mm 2140
Ground length and ground pressure mm/MPa 3150-0.105
Pitch mm 228.6
Forward speed km/h 0-3.6
0-6.6
0-11.5
Reverse speed km/h 0-4.4
0-7.8
0-13.5
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
