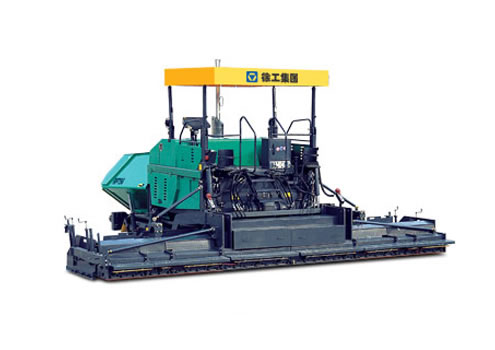

RP756 Paver
RP756 is a kind of new generation multifunctional paver. It is completely upgraded with new technology, featuring excellent performance, simple operation, and superior performance/price ratio. With the max. paving width of 7.5m, it is the optimal equipment for paving various kinds of materials for the construction of highways. The conveying system and material distribution system have extra large capacity and they are independently driven (from left/right), which can meet different construction requirements. In addition, it is more to operate and it can achieve optimal paving effect under the most tough work environment.

Technical Specifications

Items Unit Parameters
Basic paving m 3
Max. paving m 7.5
Max. paving thickness mm 350
Paving speed m/min 0~18
Travel speed km/h 0~3.0
Theoretical Productivity t/h 600
Hopper Capacity t 14
Gradeability % 20
Pavement evenness mm/3m 3
Transverse levelling accuracy % ±0.03
Centre crown ratio % -1~3
Engine model D6114ZG1B
Engine power kw 140
Engine speed r/min 2300
Fuel tank capacity L 270
Machine weight t 19.9~24.6
Dimension mm 6700×3000×3850
Vibration frequency (optional) Hz 0~50
Screed heating Gas heating
Auger and conveyor control Automatic Control by Ultrasonic Sensors
Automatic levelling control Simulation control
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
