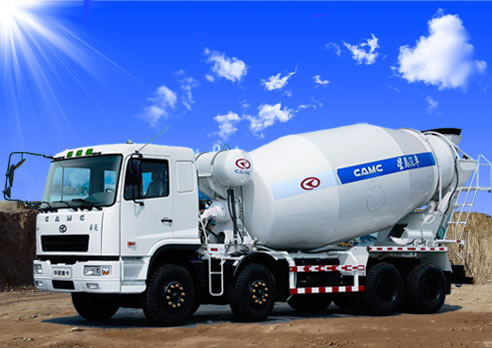

8×4 Concrete Truck Mixer

Mixer truck Introduction and Features

1. Mixer truck is used to mix cement, asphalt and other materials. It is widely used in construction industry both China and abroad.
2. Our mixer truck is preferred for smart appearance, high efficiency, high safety and convenient operating system.
3. We are the CAMC truck mixer valin car level agents,located in Shanghai, China.

Technical Parameters

Vehicle Type
Concrete mixer truck
Trade Mark
HualingStar
Vehicle Model
HN5310P37C3M3GJB
Color
Blue-White
Engine Model
Isle375 30
Engine Brand
DF Cummins
Engine Power
275KW(375HP)
Emission Standard
Euro II
Tread(mm)
2065/2065/1860/1860
Wheel Base
1850+3370+1350
LXWXH(mm)
10580X2495X3850
Mixing Volume
12 cube
Feeding Speed
>2.7 m3/min
Discharging Speed
> 1.2 m3/min
Pump
Rexroth (Germany)
Reducer
ZF(Germany)
Tyre Spec.
12.00-20/12.00R20
Tyre number
12+1
GVW(Kg)
31000
Kerb Mass(Kg)
15800
Axles number
4
No. of Plate spring
9/9/12(F/M/R)
TansmissionType
Mechanical(synchronizer)
Transmission Model
9 Shifts
Clutch Type
Hydraulic control with air assisted
Crew(persons)
3
Driving Position
Left-hand/Right-hand
Min.Ground Clearence(mm)
255
Mar.Speed
75Km/h
Max.Grade Ability
30°
Min.Turning Radius
7 meter

Note:The body color,engine,gearbox,tire.,ect have options.

& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
