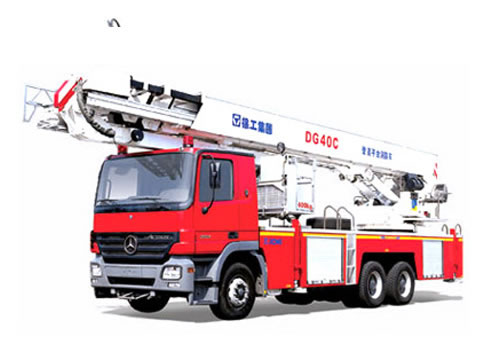

DG40C Fire Truck
Germany Benz Actros3332 chassis; 4 telescopic booms and 1 folded boom structure; with the largest load of 400kg, the working platform reserves the escape channel, and rescue through multiple channels; equipped with reverse radar and integrated lubricating system, the machine can work on one side; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; the machine has 22 protecting devices.

Technical Specifications

Main technical data in travel configuration
Category Item Unit Parameter
Dimension Overall length mm 12400
Overall mm 3960
Overall mm 2500
Wheel base Axles 1 and 2 mm 4500
Axles 2 and 3 mm 1350
Tread Front axle mm 2035
Rear axle mm 1804
Weight Weight with full load kg 28800
Axle load Front axle kg 7030
Dual rear axles kg 21770
Travel performance
Max. travel speed km/h 85
Min. turning diameter m ≤19.3
Approach angle ° 16
Departure angle ° 10
Braking distance(at 30km/h) m ≤9.5
Min. ground clearance mm 290
Max. gradeability % ≥28
Main technical data for operation
Main performance Rated working m 40.5
Rated load kg 400
Max. working radius m 18
Outrigger span(longitudinal×lateral) m 6.9×5.5
Elevating range ° ?3~80
Working speed Boom deploying time S ≤180
Outrigger extending time S ≤30
Slewing speed r/min 0~2
Fire-fighting performance Water monitor rated flow L/s 50
Water monitor rated pressure MPa ≤1.0
Water monitor rated reach m ≥65

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
